Shoring construction is essential for ensuring the stability and safety of structures during excavation and building modifications.
There are 12 key types of shoring construction methods, each suited to specific project requirements.
Selecting the right type of shoring construction can significantly impact the efficiency and safety of a construction project.
Understanding the unique applications of different shoring techniques can aid in better planning and execution of construction projects.
Shoring construction is a temporary support system used during building projects to prevent collapse or instability in structures. It is crucial to maintain safety when working on large-scale projects, especially during excavation or when alterations are made to existing structures. By providing support to walls, columns, or trenches, a shoring system in construction ensures that the building process progresses smoothly and safely.
There are 12 basic types of shoring in construction:
H and I-beam shoring construction involves the use of steel beams driven into the ground to support excavation sites. These beams are often placed vertically and are ideal for deep excavations in dense urban environments where space is limited. The beams can also be reused, making them an economical choice for multiple projects.

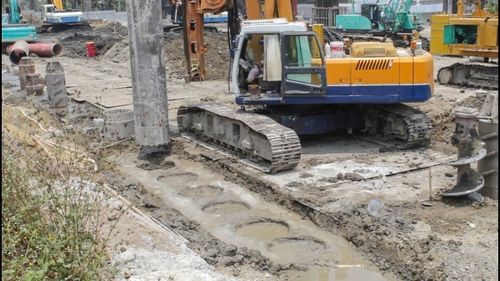

Secant pile shoring construction is a method where interlocking concrete piles are installed to create a continuous wall. This technique is highly effective in waterlogged areas as it prevents groundwater ingress. It is commonly used for deep excavations, especially in urban settings where space constraints demand vertical excavation.
This type of construction shoring involves placing piles close to each other but with a small gap in between. This method is suitable for supporting soil during excavation and is typically used in projects where ground conditions are stable. The gaps between piles allow for some groundwater flow, making it less ideal for waterlogged sites.

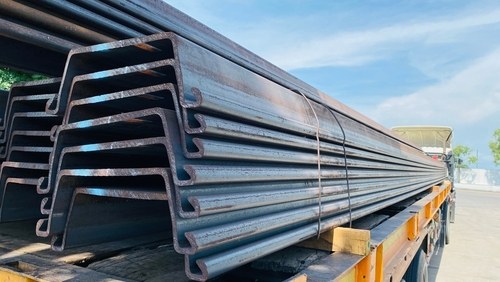

Sheet piles are long, thin steel sheets driven into the ground to create a barrier. They are often used in waterfront shoring construction or where soil retention is required. Sheet piles are versatile and can be installed quickly, making them a popular choice for temporary shoring solutions.

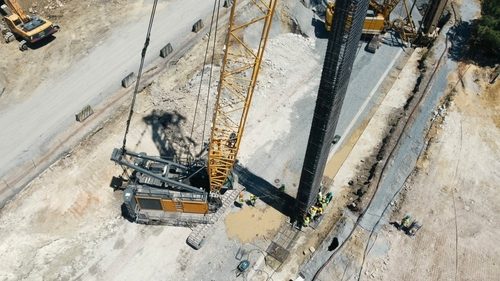

Diaphragm walls are reinforced concrete walls constructed deep into the ground. They are used as permanent retaining walls or as part of the foundation for large structures like tunnels and basements. Diaphragm walls are highly durable and can support significant loads, making them ideal for large-scale infrastructure projects.

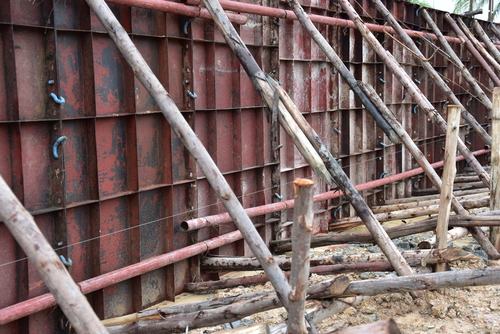

Raking construction shoring involves angled supports or rakers, that brace against the structure and the ground. These types of shoring in construction are used when there is a need to support walls that are leaning or at risk of collapse. Raking shoring provides stability to structures with compromised integrity.

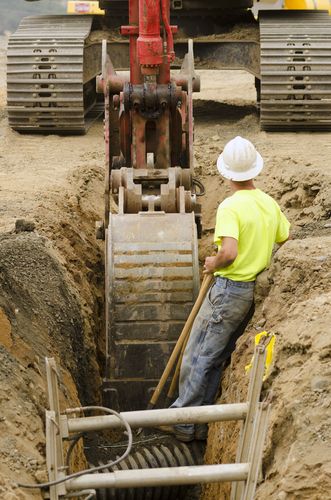

Hydraulic shoring construction uses hydraulic pistons to press metal plates against trench walls, preventing collapse. This system is highly adjustable and quick to install, making it ideal for trenching operations. Hydraulic shoring is also reusable, making it a cost-effective solution for repetitive tasks.
Soil nail construction shoring involves reinforcing soil with steel bars (nails) driven into the ground and secured with a block of concrete or shotcrete facing. This technique stabilises slopes and retaining walls. It is particularly useful in areas with steep gradients or loose soil conditions.

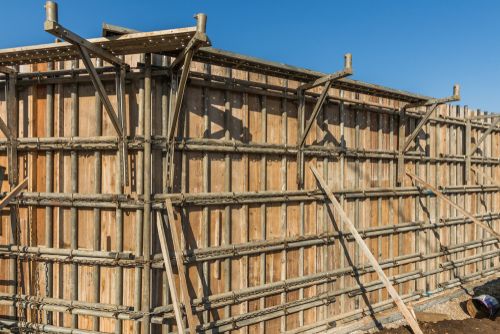

Timber shoring construction is one of the oldest methods, utilising wooden beams and planks to support trenches or structures. Though these types of shoring are less common in modern construction, they are still used in smaller projects or where traditional methods are preferred. Timber shoring is highly customisable but less durable than metal or concrete alternatives.
Dead shoring involves vertical supports placed directly under a load to prevent collapse. It is commonly used during the repair or alteration of buildings, especially when removing or replacing walls. Dead shoring ensures that the structure remains stable while work is being carried out.
Flying shoring is used to support parallel walls where the ground space between them cannot be disturbed. Horizontal supports are placed between the walls, creating a bridge that provides stability without interfering with the ground below. This technique is often used in densely built urban areas.
Pneumatic shoring uses air pressure to stabilize trench walls. This method is quick to deploy and is commonly used in areas with loose or sandy soil where other different types of shoring may not be effective. These types of shoring in construction is lightweight and easy to adjust, making it a flexible solution for various trenching needs.
Shoring construction is a vital aspect of building projects, providing necessary support to prevent structural failures during various phases. The 12 types of shoring in construction discussed here each have specific applications, ranging from deep urban excavations to traditional timber support systems. Understanding the appropriate use of each shoring method ensures safety, efficiency, and cost-effectiveness in construction projects.
The primary purpose of shoring construction is to provide temporary support to structures or excavations during building projects, ensuring stability and preventing collapse.
Shoring systems are crucial in construction as they maintain the safety and integrity of a site, especially during excavation or when altering existing structures.
The best type of shoring construction depends on the specific project requirements, including soil conditions, depth of excavation, and environmental factors. Secant pile shoring, for instance, is ideal for waterlogged areas, while H and I-beam shoring is excellent for deep urban excavations.
Shoring construction can be made from various materials, including steel, concrete, timber, and even pneumatic systems that use air pressure. The choice of material depends on the project's needs and the type of shoring required.
