Guide to Sunken Slab Construction Process

Constructing a sunken slab section and its details requires careful planning and precise execution to ensure the structure's stability and functionality. Here's a detailed guide to constructing a sunken slab:

1) Planning and Design:

1. Assessment of Area: The first step involves assessing the area where the sunken slab section will be constructed. This includes determining the dimensions, depth, and exact location of the sunken area, considering factors like drainage, plumbing, and the overall layout of the space.

2. Design Considerations: The sunken slab design should account for load-bearing requirements, waterproofing needs, and insulation if required. It's crucial to create detailed blueprints that outline the specifications and measurements to guide the construction process.

2) Excavation:

1. Marking the Area: The next step is to mark the area that will be excavated for the sunk slab. Clear markings help ensure that the excavation is precise and aligns with the design plans.

2. Digging the Pit: Once marked, the soil or existing flooring material is excavated to the desired depth. The depth typically depends on the planned thickness of the slab and the intended use of the sunken area. For instance, deeper excavations may be needed for bathrooms to accommodate plumbing.

3) Formwork Installation:

1. Setting Up Formwork: Formwork, usually made from wood or metal, is installed around the perimeter of the excavated area. The formwork serves as a mold to hold the concrete in place while it sets and cures.

2. Ensuring Stability: It is essential to ensure the formwork is sturdy and securely positioned to prevent any shifting or collapsing during the pouring of concrete.

4) Reinforcement Placement:

1. Laying Reinforcement: Steel bars (rebar) or wire mesh are placed inside the formwork to reinforce the concrete. The reinforcement helps distribute loads evenly and prevents cracking or structural failure over time.

2. Tying Reinforcement: The steel bars or mesh are tied together securely to ensure they remain in place when the concrete is poured.

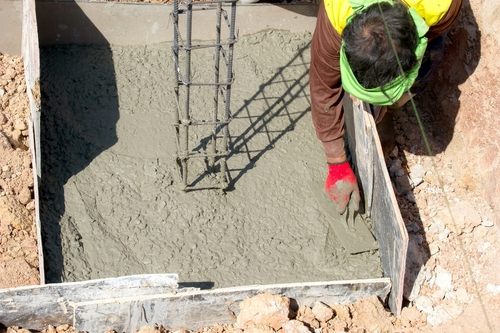

5) Concrete Pouring:

1. Mixing Concrete: A suitable concrete mix is prepared, taking into consideration the required strength and workability. The sunken slab mix is usually made of cement, sand, aggregate, and water.

2. Pouring the Concrete: The prepared concrete i.e. considered as the concrete slab filling material, is poured into the formwork, ensuring it fills all spaces and encases the reinforcement. Workers use tools like vibrators to remove air pockets and ensure the concrete is compact and uniform.

6) Leveling and Finishing:

1. Screeding the Surface: After pouring, the surface is screeded using a flat board to level the concrete and remove excess material. This ensures a smooth, even finish.

2. .Troweling: Troweling further smooths the surface of the sunken slab and prepares it for any additional finishes or treatments that may be required.

7) Curing the Concrete:

1. Initial Curing: The concrete must be kept moist and allowed to cure properly to achieve maximum strength and durability. This is typically done by covering the slab with wet burlap or plastic sheets to retain moisture.

2. Extended Curing: Curing times vary but generally range from 7 to 28 days, depending on the type of concrete and environmental conditions. Proper curing is essential to prevent cracks and ensure the slab's longevity.

8) Waterproofing and Finishing Touches:

1. Applying Waterproofing Membrane: To prevent water seepage, especially in wet areas like bathrooms, a waterproofing membrane is applied over the cured concrete sunken slab.

2. Final Finishes: Once the waterproofing is complete, the sunken slab section can be finished with tiles, stone, or other materials as per the design requirements

Use of Sunken Slabs

Sunken slabs are primarily used in areas where a drop in floor level is required for functional or aesthetic purposes. Here are some common uses:

1) Bathrooms and Wet Areas:

Sunken slabs are often used in bathrooms and other wet areas to create a step-down effect. This design helps contain water within the designated area, making it easier to manage drainage and prevent water from spilling onto the main floor.

2) Kitchens:

In some homes, particularly in traditional designs, sunken slabs are used in kitchens to separate the cooking area from the dining or living space. This helps contain spills and keeps the kitchen area distinct from other parts of the home.

3) Living Rooms:

For aesthetic reasons, sunken slabs can be used in living rooms to create a sunken seating area or a different level for specific purposes. These sunken slab section details add a unique visual appeal and can make the space feel more dynamic.

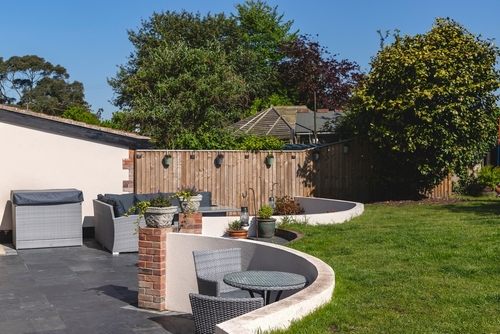

4) Outdoor Areas:

Sunken slabs are also popular in outdoor settings, such as patios, gardens, or swimming pool decks. They help manage water runoff and drainage while providing an interesting design element that blends with the natural landscape.

Advantages and Disadvantages of sunken slabs

1) Advantages:

a) Drainage: Helps with water management in areas prone to moisture.

b) Aesthetic Appeal: Adds a unique design element to spaces.

c) Functionality: Useful for specific features like showers.

2) Disadvantages

a) Cost: Can be more expensive due to additional materials and labor.

b) Complexity: Requires careful planning and construction.

c) Maintenance: May need more upkeep to ensure proper drainage and avoid water damage.
