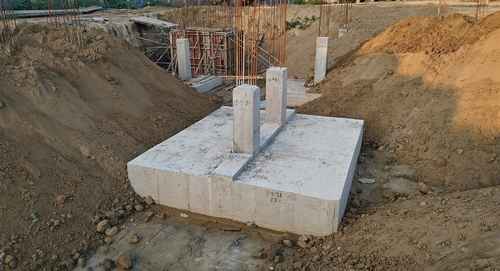

A combined footing is essentially a long platform made of concrete that supports more than one column or wall. Consider it like a shared bed for multiple building columns where each needs to evenly divide their weight. This type of footing is often used when columns are too close to each uncommonly spaced, or when the edge of a footing needs to be restricted due to property boundaries. By opting for a combined footing, structures can maintain balanced support without compromising on the available space or construction costs.
Also Read: What are Footing in Construction?
In the world of construction, combined footings come in various shapes and dimensions to suit the unique demands of each project. Let's delve into some of the commonly adopted types:
The rectangular combined footing, as the name suggests, is shaped like a rectangle. It is typically used when the loads from two columns are not equal and their centers do not align on a single line. This imbalance is corrected by the rectangle's differing lengths, thus creating a platform that can evenly support both columns. This type is particularly handy when one of the columns is close to a boundary line and a standard spread footing would go beyond this limit.
This type involves two isolated footings connected by a beam or strap to help them act together. It's specifically useful when two columns are spaced too irregularly for a standard rectangular footing. The strap connects the two footings without exerting any pressure on the soil between them, effectively balancing the load even if the footing is not centered under the columns.
When one column carries significantly more load than another, a trapezoidal combined footing becomes a favorable choice. It is designed with a trapezoidal shape to distribute the weight according to each column's demands. This footprint ensures the heavier column receives more area and thus more support, maintaining the stability of the entire construction.
For situations where multiple columns are lined up and need a joint footing, the slab type combined footing is an ideal solution. Essentially, it's a large slab supporting a row of columns. This type is similar to a strip foundation but adapted for columns rather than walls. It offers the simplicity of construction and is best utilized when the bearing capacity of the soil is on the lower side.
Combined footings are adaptable solutions tailored to meet the distinct requirements of various construction challenges. While the types mentioned above are among the most widely used, the perfect footing for any project depends on specific factors like soil condition, column spacing, load requirements, and proximity to property boundaries. Understanding these fundamentals ensures a stable and enduring base for any structure.
Combined footing is mainly used when building columns are near each other and a single footing cannot support a column individually without overlapping another. This is often the case in structures where space is limited or where soil capacity is less and a wider distribution of load is necessary to prevent excessive sinking or settlement. They are also used when columns are near property boundaries and standard footings would extend beyond the allowed building line.
Combined footings are particularly useful in constructions where space is at a premium. When adjacent columns are close to each other, and individual footings would overlap, a combined footing provides a practical solution by consolidating these into a single structural element.
In areas where the soil bearing capacity is less than ideal, the distribution of loads becomes a critical concern. Combined footings help distribute the load from multiple columns over a larger area than individual footings could, thus reducing the pressure on the soil and minimizing the risk of excessive settlement.
Often, construction near property lines faces restrictions regarding how far foundations can extend outward. Combined footings can be designed to fit within these spatial constraints while still supporting the required loads, making them an essential tool for urban construction projects.
Buildings with columns that carry different amounts of weight benefit from combined footings. These footings can be engineered to accommodate the uneven distribution of loads, ensuring the stability of the structure despite the varying weights from column to column.
When two or more columns are relatively close, using a single, larger footing rather than multiple individual ones can be more cost-effective. It reduces the need for extra excavation, formwork, and concrete, contributing to both material and labor savings.
Each of these uses demonstrates the flexibility and efficiency of combined footings, making them a crucial component of modern construction in challenging environments.
Combined footings use the available space efficiently by supporting multiple columns on a single footing platform. This is especially beneficial in tight spaces.
These footings distribute the load of several columns or walls evenly across a larger area, reducing stress on the soil and minimizing subsidence or uneven settling.
By consolidating footings for multiple columns, combined footings reduce the amount of excavation, formwork, and concrete needed, which can lead to significant cost savings.
Combined footings can be adapted to various site conditions and restrictions, making them a versatile foundation solution for challenging builds.
For more insights on the materials often used in such constructions, explore Building Materials Used in Construction.
In conclusion, combined footings are a practical foundation choice for many construction scenarios, particularly where space is limited or soil conditions are challenging. They ensure stability and even load distribution for structures, preventing potential issues like excessive settlement. Additionally, the use of combined footings can lead to reductions in both material needs and overall construction costs, making them a favorable option economically. As buildings continue to rise in diverse environments, understanding and implementing such foundational solutions is crucial for safe and sustainable construction practices.
The formula for calculating a combined footing depends on balancing the load from multiple columns with the soil’s bearing capacity. To ensure stability, the footing area is set so the center of gravity aligns with the center of the combined loads. For a rectangular combined footing, load distribution is simplified to A = P/q, where P is total load and q is the soli bearing capacity.
The dimensions and size of a combined footing are based on the load from columns, soil-bearing capacity, and the distance between columns. Typically, the footing is designed to accommodate both columns on a shared base with enough width and length to distribute loads effectively, ensuring stability and balance.
The minimum thickness of combined footing is usually determined by the soil-bearing capacity, loads from the columns, and safety factors against bending and shear forces. In most cases, a thickness of 200-300 mm is typical, but specific requirements may vary based on engineering design standards.
Combined footing is classified into several types based on load and column arrangement:
1. Rectangular Combined Footing: Ideal for columns with equal loads.
2. Trapezoidal Combined Footing: Suited for columns with unequal loads.
3. Strap Footing: Connects two footings with a beam to distribute loads evenly.
4. Slab and Beam Footing: Uses beams and slabs to support column loads over wider areas.

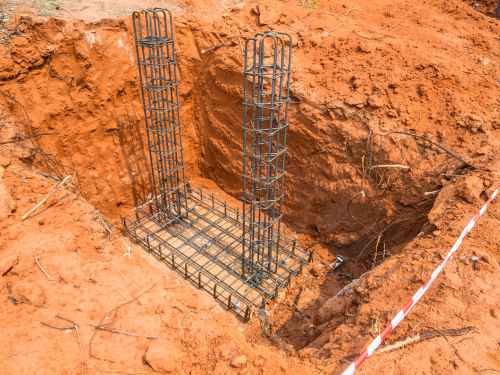

The main reinforcement in combined footing uses longitudinal and transverse bars to manage bending and shear forces. Placed in the footing layers, these combined footing reinforcement details add stability and strength, creating a durable foundation against structural stresses.
