rial choice impacts a column's strength, flexibility, and fire resistance.
Reinforced columns are crucial for handling heavy loads and preventing failure.
Proper sizing and shape selection ensure efficient load-bearing and stability.
Tied and spiral columns offer enhanced strength and load-bearing capacity.
Composite columns provide both strength and heat resistance in construction.
Short and long columns differ in load handling and resistance to buckling.
When constructing columns, several basic principles are paramount to ensure they're fit for purpose:
How the column distributes the weight it carries is vital. It must be designed to handle the loads from above, which could be the building's own weight, people, or furniture.
The choice of materials, whether concrete, steel, stone, wood, or a composite, impacts a column's strength, flexibility, endurance, and fire resistance.
The column's size and shape are determined by the space available and the load it needs to support. Wider bases are often used for heavier loads, while different shapes (square, rectangular, circular) are chosen based on design needs and load distribution.
Almost every concrete column is reinforced with steel for added strength. This reinforcement needs to be carefully planned to match the load and prevent failure.
Engineers need to account for the buckling risk, especially in long columns, by determining the appropriate length-to-width ratio.
The methods used to cast and create the columns, including the professionalism in the construction process, the curing of the concrete, and the placement of the reinforcement, also make a significant difference in the column's durability.

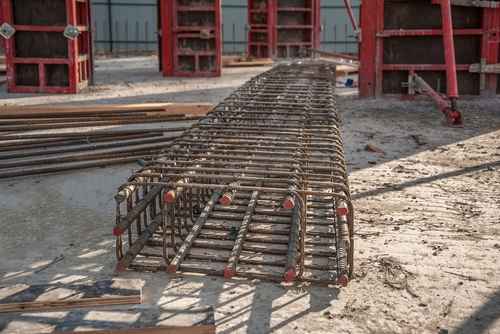

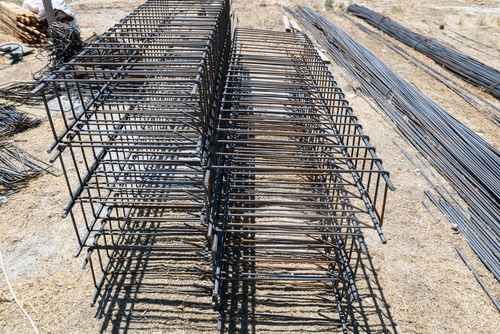

Tied columns are strong pillars you'll find in many buildings. They have a solid core made of concrete with vertical steel bars inside for extra strength. Around these bars, you'll see horizontal steel bands that hold everything together. They're reliable for supporting heavy weights from above.
Spiraled columns are special because of the spiral-shaped steel wire that goes around the central steel bars from bottom to top. This design makes them tougher, letting them stretch under heavy loads, which means they can stand up to more before failing compared to other column types.
Composite columns combine the best of both worlds: steel and concrete. Sometimes, steel frames are filled with concrete, while other times, they come with additional steel bars inside. Because of their mixed materials, they're good at bearing loads and can also handle intense heat from fires better than standard columns.
These columns are designed for the ideal situation when all weight forces are centered right down the middle of the column. Although it's rare to get this perfect condition in a real-life construction, understanding these columns helps engineers predict how similar, but less perfect, components will behave.
These columns experience off-center loading in one direction. Imagine a column that's pushed on one side because it’s connected to other structural elements like a wall or a heavy beam. This side pressure can cause bending, so such columns need to be designed to resist this uneven stress.
When a column has force applied in two different directions — think of a corner where two walls meet — it faces biaxial loading. These columns need to be sturdy in both directions as they play a critical role in the structure's stability.
Short columns are like the strongmen of columns. They're squat and because they're so solid and tough, they mainly just get pushed down rather than bending. They need to be made of materials that can handle a lot of squishing without breaking.
These types of columns in construction have a different challenge. Because they're taller and slimmer, they're more at risk of bending sideways from the weight above or the force of winds from the side. Engineers need to plan for this to prevent the column from bending too much.

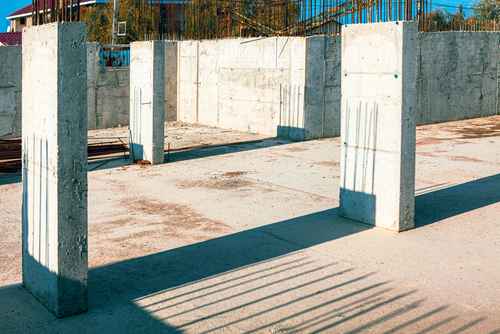

Square and rectangular columns are some of the easiest to make. Because of their straightforward shape, it's simpler to set up the mold that shapes them. They're sturdy and do the job well in a variety of buildings.

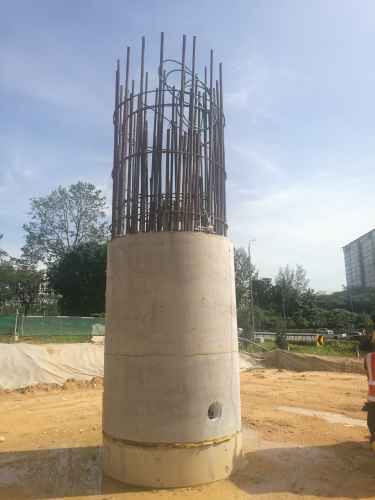

Circular columns look sleek and can slide into a building design with style. They're particularly useful in structures with curves or for adding a decorative touch. But beyond just looks, they evenly distribute weight and can bear a fair amount of load too.
L-shaped columns fit nicely into corners where walls come together. They add strength to the meeting point of these walls and work just as well as their square and rectangular buddies.
For serious support, T-shaped columns bring their strength to the table, quite literally looking like a 'T' from above. They're often used in large-scale infrastructures where extra support is crucial, such as bridges or large buildings.

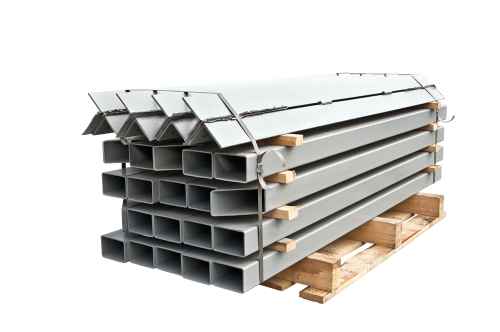

Steel columns come in many shapes, including I-shape, T-shape, and even Z-shape. They're chosen based on their strength and how they fit into a project. Steel columns can support heavy loads and work well in tall buildings, bridges, and other big structures.
Not all columns in building construction are steel or concrete. You might find ones made of stone, brick, or blocks, which may be chosen for their traditional look or specific structural features. Wooden columns add a rustic charm and can be found in homes and smaller structures. Depending on what the building looks like and how it’s used, the best material for the columns can vary greatly.
Also Read: Building Materials Used in Construction
Columns are essential components of construction that support the weight of the structure above them. They come in various types, each suited for different scenarios and design requirements. Key considerations in column construction include load distribution, material selection, size and shape, reinforcement, potential for buckling under pressure, and the proper technique in construction to ensure soundness and durability. Whether they're made from concrete, steel, wood, or even traditional materials like brick or stone, columns must be meticulously designed and constructed to hold up the building safely and effectively. The choices made in the design and construction of columns can deeply influence a building's aesthetics as well as its structural integrity and longevity.
Columns are classified based on various criteria such as the shape, cross-section, and the material used. Common classifications include rectangular columns, circular columns, and polygonal columns. Additionally, columns can be classified based on their load-carrying capacity as short columns, long columns, or slender columns
The four main parts of a column are the base or footing, shaft or body, capital or head, and the column's top or coping. The base provides stability and distributes the load, the shaft supports the vertical load, the capital serves as a transition between the shaft and the load-bearing element, and the coping protects the column's top from damage.
Main columns refer to the primary load-bearing columns in a structure. These columns typically support the majority of the vertical loads and play a crucial role in maintaining the structural integrity and stability of the building.
A T-type column refers to a column with a T-shaped cross-section. This type of column is often used when the column needs to support heavy loads or provide larger bending resistance. The T shape allows for increased load-carrying capacity compared to other column shapes.
The strongest types of columns are those that are designed to withstand high compressive forces without buckling or failure. Generally, columns with larger cross-sectional areas and shorter lengths tend to be stronger. Reinforced concrete columns and steel columns are commonly used in construction and are known for their high strength and load-carrying capacity
