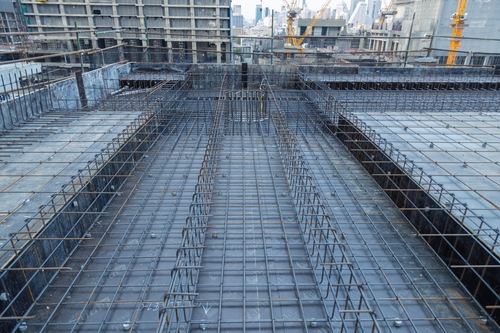

A mat foundation, also known as a raft foundation, is a large, continuous concrete slab that supports the weight of a building by spreading it across a large area. It is used when the soil beneath the structure has low bearing capacity or when large loads are involved. The mat foundation minimises the risk of differential settlement, ensuring stability over time.
Mat foundations are used in various situations, especially when the soil’s load-bearing capacity is insufficient. They are ideal for commercial buildings, basements, or any project involving high loads. Additionally, they help distribute loads across unstable or compressible soil, preventing the structure from sinking unevenly. Some of the common uses are given below:
High Load Distribution: Mat foundations evenly distribute the weight of large structures, preventing uneven settlement.
Commercial Buildings: Ideal for buildings with heavy loads, such as offices, shopping centres, and industrial complexes.
Basements: Useful in basement construction where deep excavations and large load-bearing areas are required.
Unstable Soil: Effective in areas with weak or compressible soil, providing additional stability.
The key materials for constructing a mat foundation include concrete, reinforcement steel, waterproof plastic sheets, and compacted soil. These materials work together to ensure the foundation remains strong and stable under the pressure of the superstructure.
Concrete: Provides a solid and durable base for the foundation, offering strength and stability under the building’s weight.
Reinforcement Steel: Steel bars or mesh are used to enhance the strength of the concrete, helping to prevent cracking and bending.
Waterproof Plastic Sheets: Protect the foundation from moisture penetration, which could weaken the concrete over time.
Compacted Soil: Ensures a stable base, preventing settlement and shifting that could damage the foundation.
The construction process of a mat foundation involves several essential steps to ensure stability:

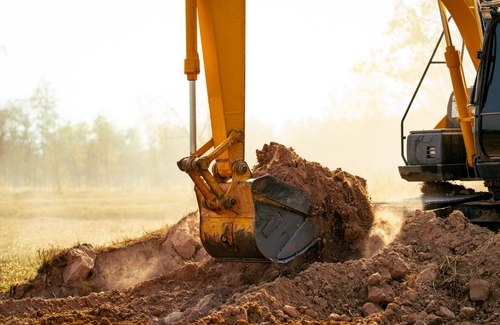

1. Excavation: The first step is to dig and level the soil to the required depth, preparing a flat base for the foundation.
2. Compaction: Compact the soil or bedrock beneath to enhance its stability and prevent shifting.

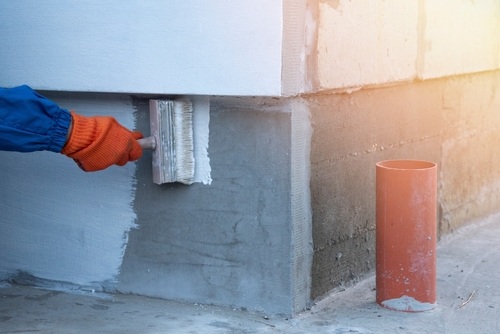

3. Waterproofing: Install a plastic sheet over the surface to keep moisture away from the foundation.

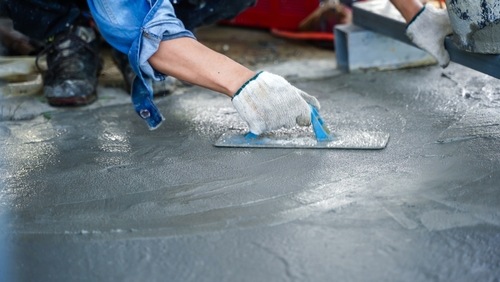

4. Concrete Layer: Pour a layer of plain cement concrete to create a smooth, solid base.

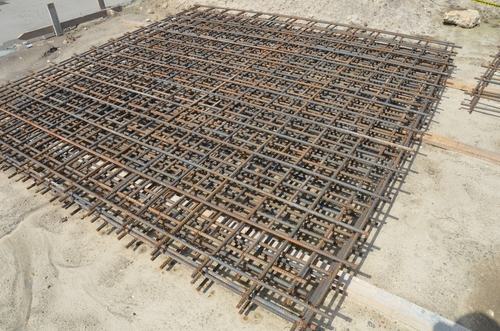

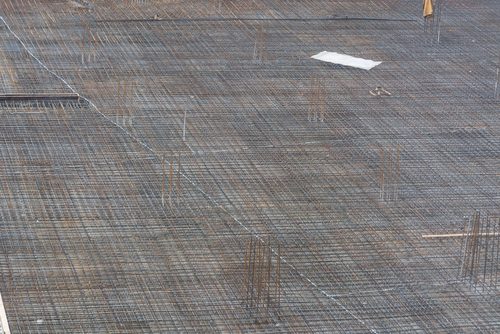

5. Reinforcement: Place steel mesh reinforcement both at the top and bottom to handle any bending forces.

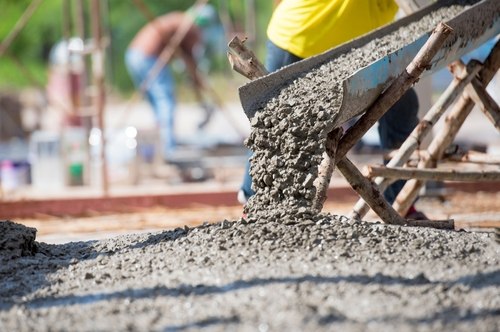

6. Concrete Pouring: Finally, pour the concrete to the required thickness, typically between 200mm to 300mm for smaller buildings, to create a sturdy foundation.
Mat foundations can vary based on load requirements and soil conditions. The types of mat foundations are as follows:
1. Flat Plate Mat: A simple, uniform slab foundation ideal for buildings with even loads on stable soil.
2. Plate Thickened Under Column: Features thicker areas beneath columns to handle concentrated loads effectively.
3. Two-Way Beam and Slab Raft: Combines beams and slabs for better load distribution in buildings with varying load conditions.
4. Plate Raft with Pedestals: Incorporates pedestals for added support, improving load distribution in areas with concentrated weights.
5. Piled Raft: Combines a raft with piles for extra stability on weak or compressible soils, anchoring the structure to more solid ground.
6. Rigid Frame Mat or Cellular Raft: A reinforced foundation with interconnected frames or cells for stability on unstable soil.
Mat foundation design involves calculating the load distribution and selecting appropriate reinforcement. Engineers must ensure that the foundation’s thickness and reinforcement are adequate to bear the building’s load without risking failure. The design also accounts for vertical and lateral forces to maintain stability and prevent failure over time. Advanced techniques are used to verify the foundation's performance under various conditions, ensuring safety and durability.
Mat footing foundations provide several benefits, including:
Mat foundations help distribute the building's load evenly across the soil, reducing the risk of uneven settling and enhancing the structure's overall stability. This ensures a longer-lasting foundation.
In areas with poor or weak soil, mat foundations are particularly beneficial. By spreading the load over a larger area, they prevent the foundation from sinking or shifting, making them a reliable choice for such conditions.
Mat footings can be more economical compared to multiple isolated footings. They reduce the need for extensive excavation, saving both material and labour costs while still providing the necessary strength and stability for the building.
You build your home only once, so never compromise on your foundation. Building a home is a journey that demands careful planning and solid choices at every stage. Mat foundations play a critical role in ensuring the long-term stability of your home, especially in areas with challenging soil conditions. Choosing the right materials, design, and construction methods is essential for building a reliable base.
Mat foundations are large, continuous concrete slabs that spread the weight of a structure evenly across the foundation area.
Mat foundations are also known as raft foundations.
Mat foundations reduce the risk of differential settlement and provide a stable base for large or heavy structures.
The thickness typically ranges from 200mm to 300mm for smaller buildings but can be thicker for heavier loads.
The minimum depth is typically determined by soil conditions but generally starts at around 1.5 meters.
Mat foundations are rigid, designed to spread loads evenly across a wide area.
