All About Concrete Mix Ratio In Home Building

Types of Concrete Mix Ratio

Understanding different types of concrete mix ratios is essential for choosing the right mix for specific construction tasks. Each type serves a different purpose and varies in ingredient proportions, offering unique benefits suited to various building requirements.

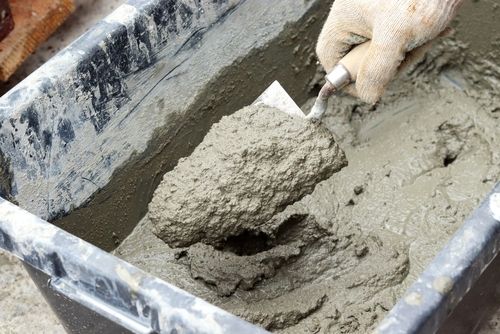

1. Nominal Mix Concrete

Nominal mix concrete is a basic mixture used for simpler, less demanding construction projects. Common ratios like 1:2:4 or 1:3:6 (cement:sand:gravel) are typically used for non-structural components such as small floors or walkways. This mix ensures standard strength and is perfect for general construction needs where high durability is not a priority.

2. Standard Mix Concrete

Standard mix concrete refers to concrete mixes whose proportions are defined by codes or standards designed to achieve a specific strength and durability. Ratios such as 1:1.5:3 or 1:2:4 are often used for constructing structural elements like beams, pillars, and different types of slabs, which require greater precision in mixing to support significant weights and stresses.

3. Design Mix Concrete

Design mix concrete is tailored for high-strength requirements, where exact ingredients and their quantities are calculated based on the project's specific needs. This mix is designed scientifically, often with the help of software and calculations, to achieve desired properties such as increased durability, high compressive strength, and specific workability. It's used in complex constructions like high-rise buildings or heavy-load-bearing structures.

Concrete Proportion Mix for Various Grades of Concrete

Choosing the correct concrete mix ratio is critical for achieving your construction projects' desired strength and durability. Below is a simplified table that outlines the concrete proportion mix for various grades of concrete. These grades help determine the correct mixture of cement, sand, gravel, and water needed to meet specific strength requirements.

• M5 to M7.5 Grades: Ideal for non-load-bearing structures, such as garden paths and fence post footings. These mixes are unsuitable for supporting buildings but great for small DIY projects.

• M10 to M15 Grades: These grades are commonly used in residential construction for elements that support moderate loads. They are perfect for building foundations and internal floors.



• M20 to M25 Grades: This high-strength concrete is suitable for significant structural applications, including support columns and beams bearing heavy loads.

Concrete Proportioning Methods

Choosing the proper concrete proportioning method is vital for achieving the desired concrete mix ratio and ensuring the mix suits your specific construction needs. Here’s a straightforward explanation of three standard methods used to determine the proportions of cement, sand, gravel, and water in concrete mixes.

1. Arbitrary Method

The Arbitrary Method is a straightforward approach often used for small-scale projects or when precision is not critical. This method uses set rules and past experiences to determine the mix proportions. For example, a standard arbitrary ratio might be 1:2:4 for cement, sand, and gravel. This method is quick and easy but may not always provide the most reliable results for strength and durability.

2. Fineness Modulus Method

The Fineness Modulus Method focuses on the aggregate's particle size to determine the best mix. This method calculates the fineness modulus (FM) of the sand used in the blend. It adjusts the proportions of sand and gravel based on this number to achieve the desired consistency and workability. The fineness modulus is an index number representing the mean size of the particles in the sand. The higher the FM, the coarser the aggregate. This method helps achieve a more precise concrete mix proportion that optimises the concrete’s strength and durability.

3. Maximum Density Method

The Maximum Density Method aims to create a concrete mix ratio that gives the highest possible density, which typically leads to high strength and durability. This method adjusts the ratios of different-sized aggregates to minimise the voids in the concrete, thus increasing the density. By carefully calculating and combining various sizes of sand and gravel, this method can significantly improve the quality and load-bearing capacity of the concrete.

Benefits of Concrete Cement Mix

Understanding the advantages of properly mixed cement concrete can help emphasise why it's essential for home building. Here are the key benefits:

1. Strength and Durability: The correct concrete mix ratio ensures the structure's high stability and longevity, which allows it to withstand environmental stresses and loads.

2. Cost-Effective: Using the correct proportions minimises waste and can reduce overall construction costs by ensuring the concrete performs as expected without needing repairs or early replacement.

3. Versatility: By altering the concrete mix proportions, cement concrete can be adapted to a wide range of construction needs, from foundations to decorative elements.

4. Energy Efficiency: Properly mixed concrete provides excellent thermal mass, helping regulate indoor temperatures and reducing energy costs.

5. Low Maintenance: When mixed and applied correctly, cement concrete surfaces require minimal upkeep and resist weathering and wear over time.
