STEPS TO INSTALL CONCEALED PLUMBING

Concealing the pipes and wires into the wall is an important thing to do while building your home. It keeps the look and finish of your home intact, making it modern, and livable for the family. Here's a step-by-step guide to conceal piping in the walls of your home.

logo

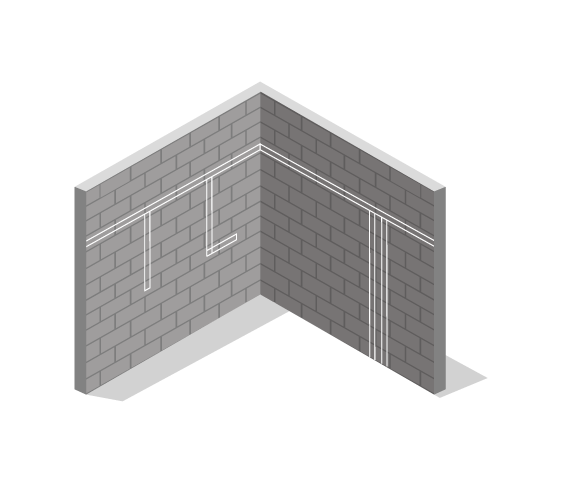

Step No.1

MARK THE TRACKS

First, use a spirit level to mark the tracks of pipe outlets such as the tap, showers, and washbasin, and ensure that the drinking water pipe and drainage pipe do not overlap.

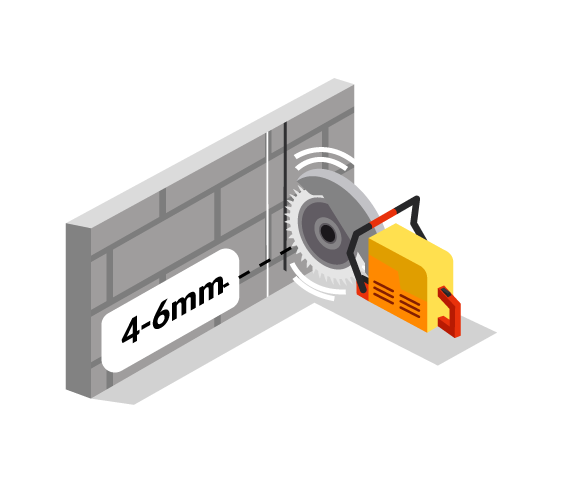

Step No.2

THICKNESS OF THE CUT

Then cut the marked area with the help of a disc blade, ensuring that the cut is 4-6 mm more than the thickness of the pipes. Make sure to not cut any column or beam of your home in the process.

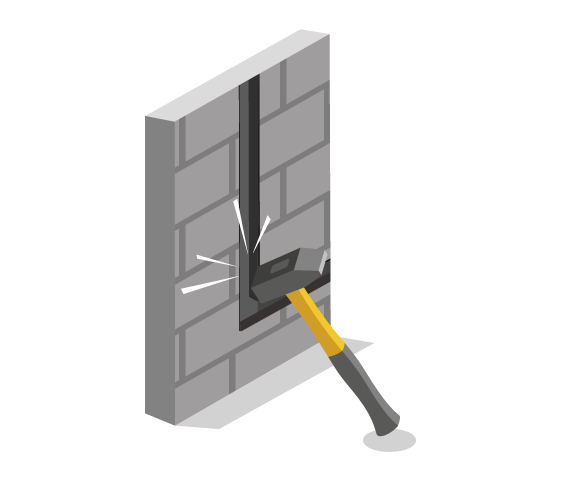

Step No.3

MAKE PERFECT GROOVES

Use a spade to make grooves in the marked area. If the wall is a load-bearing wall, make sure to not shatter the entire marked area in one go.

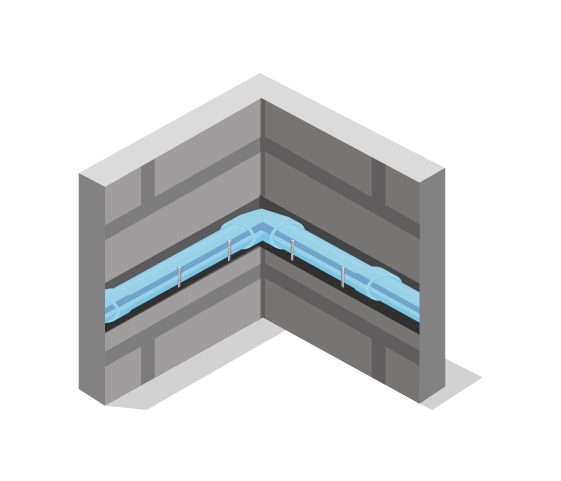

Step No.4

FIT THE PIPES

Fit the pipes into grooves with the help of nails.

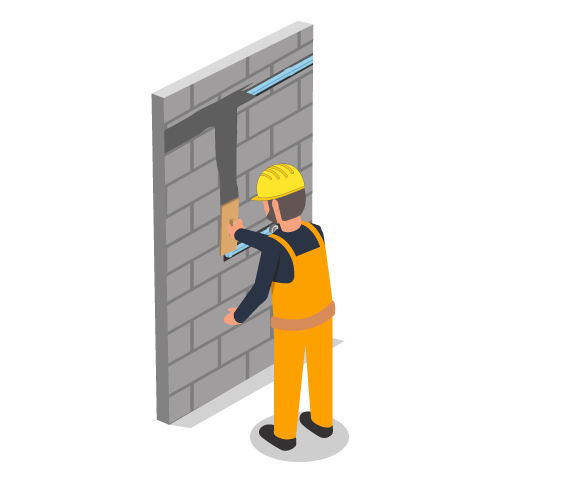

Step No.5

FILLING THE GAPS

Fill the gaps between the pipes and the walls with cement and sand mortar.

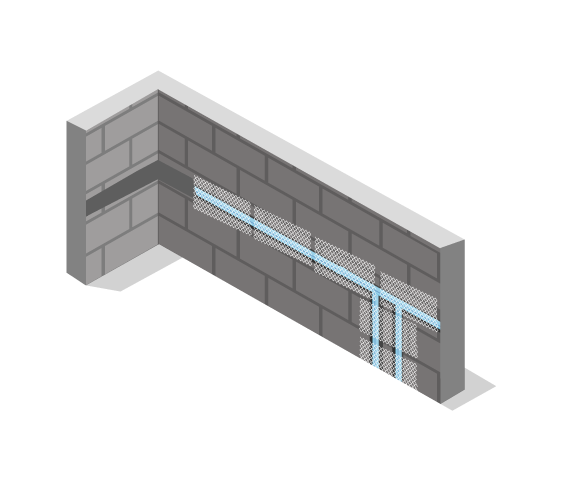

Step No.6

TO AVOID CRACKS

Use a steel mesh to avoid cracks in the wall. Place this on the groove, and fix it with the help of nails and mortar.
