A load-bearing wall structure is a building setup where the walls support the whole building's weight, passing it down to a single foundation
From load-bearing walls and beams to columns, braces, and trusses, 5 key components hold your structure strong
For smaller structures, like houses or two-story buildings, using load-bearing walls can be cheaper
Materials used in load-bearing walls are often naturally resistant to fire, which can make your building safer in case of a fire
Load-bearing structures are not suitable for tall buildings, typically restricting their use to two or three floors at most
A load-bearing wall structure is used where solid ground is close to the surface, so the wall foundation can sit directly on it. As the building gets taller, the walls need to be thicker, which reduces the usable floor space and increases costs.

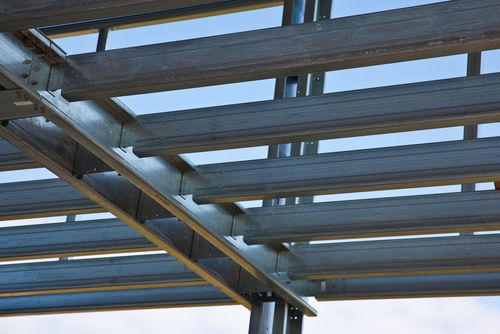

Most modern buildings use frame structures made from light but strong materials to support the floors. These buildings have thin and lightweight walls inside and outside, instead of thick load-bearing walls. In a load-bearing system, the walls not only support the building but also protect against weather, noise, heat, and fire.
Now that we understand what structural load-bearing is, let’s look at its types.
What they are: These are the main walls of a building that hold up everything above them, including the roof and upper floors
How they work: They transfer all their weight to the building's foundation, keeping everything stable
Materials: Typically built from sturdy materials like brick, stone, or concrete blocks

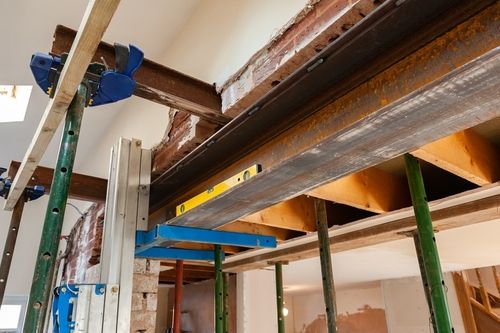

What they are: Long, sturdy bars that support the weight over open spaces like doorways or between walls
How they work: Beams spread their weight across their length and pass it onto the walls or columns they're connected to
Materials: Often made of wood, steel, or reinforced concrete
Also Read: Types of Beams
What they are: Tall, vertical poles that help support the beams and spread the load within a structure
How they work: They stand upright and carry loads straight down to the foundation from the top (like a roof) .
Materials: Commonly constructed from materials like steel, reinforced concrete, or wood
What they are: Supportive elements that help to reinforce and stabilise the structure against side-to-side movements
How they work: Braces are installed diagonally and help to prevent the building from swaying or collapsing, especially during wind or earthquakes
Materials: Can be made from metal, timber, or other strong materials
What they are: Frameworks typically seen in the roof construction that support the roof's weight.
How they work: Trusses are designed to hold the roof up and distribute the weight evenly to the load-bearing walls.
Now that we've understood the components and how they contribute to the stability and durability of load-bearing structures, let's explore their benefits and efficiencies.
These buildings are strong and stable because they move the weight from the roof and upper floors straight down into the ground. This is like stacking blocks in a straight line, where each block supports the ones above it.
For smaller structures, like houses or two-story buildings, using load-bearing walls can be cheaper. This is because the structure itself does most of the work in keeping the building up, without needing a lot of extra steel or concrete beams for support.
The walls in a load-bearing structure do more than just hold the building up. They also help divide the space into rooms, block out noise, and keep heat in or out, all of which are bonuses on top of their main job.
The materials used for these kinds of structures, like bricks and concrete blocks, are generally easy to find. This availability can make it easier to start and complete projects in various locations without sourcing special materials.
Heavy materials like stone or brick can absorb and store heat, which helps regulate the temperature inside the building. During the day, they soak up heat, keeping it cooler inside, and at night, they can release this stored heat, helping to warm the space.
Materials used in load-bearing walls are often naturally resistant to fire, which can make your building safer in case of a fire. They're also good at blocking out sound, making the interior quieter even if the outside is noisy.
Many of the materials used in load-bearing structures, like stone and brick, are natural and more environmentally friendly compared to some modern building materials. This can make load-bearing structures a more sustainable choice in some cases.
After exploring the benefits and integral components of load-bearing structures, it's equally important to consider it’s potential disadvantages.
Load-bearing structures are not suitable for tall buildings, typically restricting their use to two or three floors at most. This limitation comes from the walls being excessively thick and impractical to support higher structures.
Building with load-bearing structures often takes more time. This is because the construction relies heavily on masonry work, which requires careful laying of each brick or block and ample time for the material to set and gain strength.
Once a load-bearing wall is built, it's challenging and sometimes impossible to move or remove it because the structure's stability depends on that wall. This makes renovating or changing the building's layout difficult.
The walls in these structures are made from heavy materials, making the entire building quite heavy. This demands a stronger and often more expensive foundation for load-bearing structures to support the added weight.
While masonry walls (like those made from bricks or concrete blocks) are excellent for bearing loads, they're not as good at insulating against weather and temperature changes. This can lead to higher energy costs for heating and cooling.
Understanding load-bearing house structures is key to making informed decisions about renovations or repairs in your home. Remember, these walls are the workhorses, silently holding everything up. If you're unsure about a particular wall, consulting a professional is always best to avoid any unwelcome surprises.
The best load-bearing structure depends on various factors such as the type of building, its location, environmental conditions, and budget. Common load-bearing structures include masonry walls, reinforced concrete walls, and steel frame structures. Consulting with a structural engineer or architect is recommended to determine the most suitable option for your specific needs.
The thickness of the slab for a load-bearing structure can vary depending on the design requirements, the materials used, and the loads it needs to support. Typically, the slab thickness for residential buildings ranges from 100mm to 150mm (4 to 6 inches). However, for commercial or industrial buildings, thicker slabs may be required to accommodate heavier loads.
Yes, a brick wall can be load-bearing. Load-bearing brick walls are commonly used in construction, especially in residential buildings. These walls support vertical loads from the floors and roof above them, as well as lateral loads such as wind or seismic forces. Proper design and construction techniques are essential to ensure the structural integrity of load-bearing brick walls.
Various types of bricks are suitable for load-bearing structures, including clay bricks, concrete bricks, and fly ash bricks. The choice of brick depends on factors such as the building's location, the expected loads, and local building codes.
The type of foundation used for a load-bearing structure depends on factors such as soil conditions, building loads, and local building codes. Common types of foundations for load-bearing structures include shallow foundations (such as strip footings and mat foundations) and deep foundations (such as pile foundations and drilled piers). The choice of foundation should be determined by a geotechnical engineer based on site-specific conditions and structural requirements.
