Choosing the correct foundation is crucial for structural stability and durability.
Shallow foundations are near the surface, suitable for light loads and stable soils.
Deep foundations reach stable soil layers, ideal for heavy loads and unstable soils.
Differences between shallow and deep foundations: depth, cost, and complexity vary significantly between shallow and deep foundations.
Key considerations include soil analysis, load requirements, cost, and environmental impact.
The choice between a deep foundation and a shallow foundation affects a project's success and longevity.

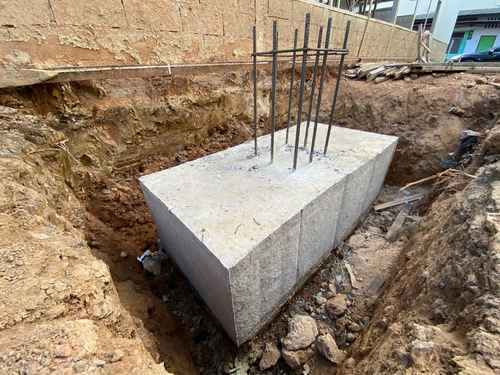

A shallow foundation, an essential component of structural engineering, is a type of foundation that is placed near the surface of the earth, typically less than its width away. This foundation method is used when the ground beneath a structure is capable of supporting the load without significant settlement or movement.
Types of shallow foundations include:

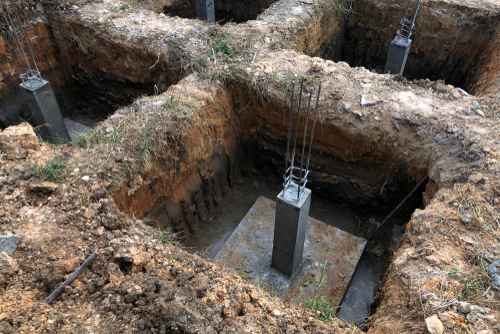

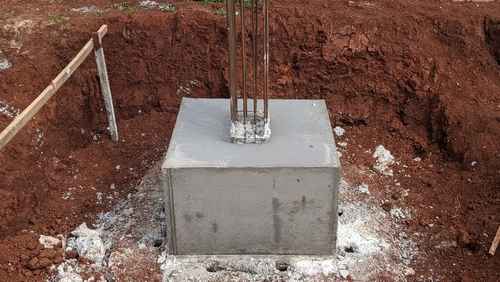

1. Individual (isolated) footings
2. Combined footings
3. Raft or mat foundations
4. Strip foundations
5. Slab-on-grade foundations
Shallow foundations distribute the building load over a large area at the base of the structure, directly to the near-surface soil. Common types include slab-on-grade, mat, spread footings, and strip footings. They are cost-effective and less complex to construct than deep foundations, making them suitable for buildings not subjected to heavy loads.

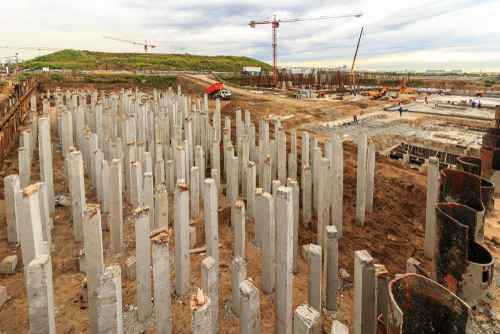

A deep foundation is employed when shallow foundations cannot provide adequate support due to weak, near-surface soils. It extends deeper into the earth to transfer structural loads to stronger, more stable subsurface layers. Deep foundations are often necessary for tall structures, large buildings, or in areas with unstable soil.
Types of deep foundations include:
1. Pile foundations
2. Caisson foundations
3. Basement foundation
4. Buoyancy raft (or floating foundations)
5. Shaft foundations
By relying on both end-bearing and skin friction to transfer forces, deep foundations ensure the stability and safety of structures in challenging ground conditions, albeit at a higher cost and complexity.
Choosing between shallow and deep foundations requires careful consideration of various factors to ensure that the chosen type best suits the project's needs, geotechnical conditions, and budgetary constraints. Below is a comparison based on relevant aspects:
Difference Between Shallow and Deep Foundation |
Shallow Foundation |
Deep Foundation |
Definition |
Placed near the surface of the earth, transferring loads at a shallow depth |
Located at a greater depth, transferring loads to deep strata |
Depth |
Generally about 3 metres or less |
More than 3 metres, exceeding the depth of shallow foundations |
Cost |
Less expensive due to simpler construction and labour |
More expensive due to complex construction and skilled labour |
Construction Process |
Simpler, involving digging small trenches and laying reinforced concrete footings on undisturbed soil. |
May involve complex processes like drilling or driving piles, requiring large machinery |
Load Transfer |
Primarily through end-bearing |
Utilises both end-bearing and skin friction |
Advantages |
Less labour, simpler construction, cost-effective |
Suitable for heavy loads, provides lateral support, resists uplift |
Disadvantages |
The possible settlement, limited to lightweight structures, weak against lateral loads |
More expensive, requires skilled labour, construction complexity |
When choosing between deep foundation and shallow foundation for construction in India, several key factors should be considered, including:
1. Soil Analysis: Understanding the soil profile and bearing capacity to select the suitable foundation type.
2. Project Load Requirements: Evaluate the expected loads to determine if a deep foundation might be necessary.
3. Cost Considerations: Weighing the financial implications of both types, including materials, labour, equipment, and construction time.
4. Environmental Impact: Considering the excavation and construction activities' effects on the environment.
5. Structural Design: The nature and magnitude of loads and design generally influence the foundation choice.
6. Regulatory Approval: Ensuring compliance with local building codes and regulations.
7. Expert Consultation: Seeking advice from geotechnical engineers and foundation experts based on the unique conditions of the construction site.
Understanding the difference between shallow and deep foundations is really important for any building project. Shallow foundations work well for buildings that aren't too heavy and where the soil near the surface is strong. On the other hand, deep foundations are better for buildings with heavier loads or where the soil isn't as stable. Picking the right foundation type is the first big step to making sure your building stands strong and safe.
The maximum depth of a shallow foundation is generally up to 3 metres (about 10 feet), based on the conditions like type of soil and load from the structure, ensuring stable support with minimal excavation.
The two primary types of shallow foundations are: spread footings, which distribute the building's load over a wider area and include individual and strip footings; and mat foundations, designed as a single large footing to support an entire structure.
A deep foundation's depth starts from 20 feet below ground level and can extend down to 65 feet or more. This depth reaches stable subsoil layers or bedrock, offering significant structural support for heavy loads and high-rise buildings.
A common example of a deep foundation is the pile foundation. These are long, slender columns made of concrete or steel, which are inserted deep into the earth by drilling or driving, to reach strong soil layers or rock.
