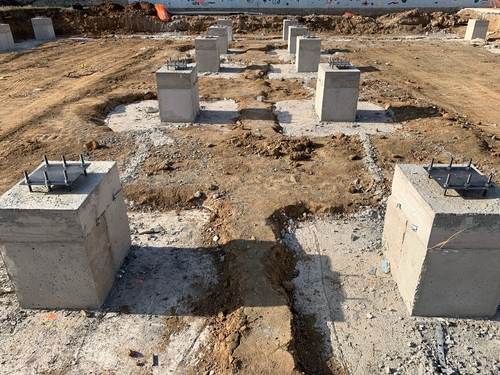

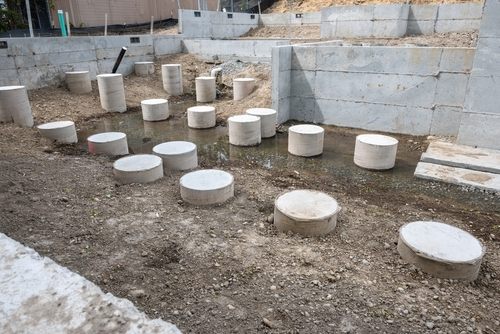

Strap footing foundation technique where two or more isolated footings are connected by a strap beam. This connection helps distribute the load evenly across the footings, ensuring the structure stays stable and safe.
It is particularly useful when building on challenging terrains or when the weight distribution of the building is uneven. Strap footing ensures stability and safety by offering a balanced distribution of weight, even in complex construction conditions. It’s an ideal solution when space is limited or when dealing with properties with unusual layouts.
When designing a home’s foundation, it's crucial to choose the right type of footing to ensure long-term stability. While standard footings work well in many situations, challenging conditions like uneven soil or space constraints may require a more specialised approach. Strap footing is an ideal solution for these cases, offering both practicality and durability.

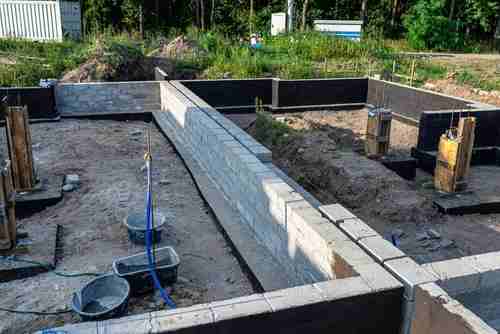

Strap footing is a specific type of foundation design used to address challenges related to soil conditions or structural layouts. It involves two or more footings connected by a reinforced concrete strap, which helps evenly distribute the load to the supporting soil. Unlike conventional footing designs, the strap does not transfer any weight to the soil; instead, it functions as a bridge, maintaining balance and alignment between the footings.
This technique is especially useful when columns are too close to the property line, making isolated footings impractical. By tying the footings together, strap footing ensures that structural loads are efficiently transferred without causing undue stress on the foundation.
You only have one chance at building your home and getting the foundation right is crucial to its longevity. Strap footings are most commonly used in situations where space constraints or uneven soil conditions make standard footing designs inadequate. Here are the scenarios where strap footings provide the best solution:
1. Limited Space: When the foundation of a column is close to the edge of the property, isolated footing can lead to tilting. Strap footing resolves this by connecting it to another footing, creating balance.
2. Uneven Soil Conditions: In areas with varying soil bearing capacity, strap footing helps distribute the loads evenly, preventing foundation failure.
3. Adjacent Structures: When building near existing structures, strap footing ensures stability without affecting the neighbouring foundations.
By understanding these conditions, builders can ensure a solid, resilient foundation that supports the strength and durability of the entire structure.

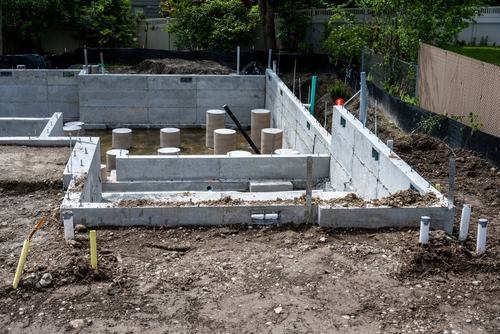

Strap footings offer a more adaptable solution, especially when the soil conditions vary or when footings are spaced far apart, unlike conventional footing designs.
| Conventional Footing | Strap Footings |
|---|---|
| Each footing is designed separately under individual load points. | Includes a strap beam that connects multiple footings, allowing them to work together. |
| Ideal for structures with evenly distributed loads and stable soil conditions. | Suitable for uneven or challenging soil conditions where footings need to be placed far apart. |
| Lacks an interconnected system, so footings work independently. | The strap beam redistributes loads between the footings, preventing overload on any single footing. |
Strap footings are ideal for sites with uneven or weak soil where traditional footing systems might fail. The strap beam helps distribute loads evenly, reducing the risk of settling or shifting. This system is also beneficial for structures with widely spaced load points, as the strap connects multiple footings to ensure a balanced foundation, particularly in complex designs.
The strap beam redistributes weight between footings, preventing anyone footing from bearing too much load, thus reducing the risk of strap footing foundation failure or uneven settlement. Reinforced concrete, including steel rebar, strengthens the strap footing, contributing to the long-term stability and durability of the foundation, making it resistant to future structural issues.
While strap footings may require more initial investment, they save money over time by preventing costly repairs and reducing the need for more complex foundation solutions. Their flexibility makes them suitable for non-rectangular or irregularly shaped plots, ensuring proper load distribution without compromising the design of the home.
By providing a stable and even base, strap footings prevent issues like cracks in walls, misaligned doors/windows, and sagging floors due to foundation movement, thus protecting the home from costly damage.
Each type serves a specific purpose, so understanding your site’s requirements is key. Strap footing isn’t one-size-fits-all. Here are a few variations to suit different needs:
A balanced strap footing is designed for situations where the load is evenly distributed across the site. It consists of two separate footings connected by a central beam. This design ensures that the loads are shared equally between the two footings, providing stable support for the structure and preventing differential settlement. It is commonly used in areas with uniform soil conditions.
Cantilever strap footings are used when there are uneven loads on the structure. For example, if one part of the building is heavier than the other or if the building has an asymmetrical design, a cantilever strap footing helps to balance the load by using a cantilevered beam. This type of footing is also effective in cases where the soil conditions are weak and might not provide sufficient support on one side.
Overhanging strap footings extend beyond the normal limits of the foundation, with the beam protruding over the edge of the footings to balance the load. This design is often used in areas where there isn’t enough room to place a full footing underneath the entire structure, such as narrow plots or sites with limited access. The overhanging nature of this footing helps to distribute loads without taking up too much valuable space on the site.
Designing strap footings involves a mix of science and strategy. Key factors include:
Understanding the soil type and its load-bearing capacity is crucial. Conducting thorough soil tests helps determine if the soil can support the weight of your structure, influencing the depth and design of the footings.
The strap beam must efficiently distribute the weight across the foundation. Proper load distribution ensures that the forces are spread evenly, preventing settling or uneven stress on the structure.
Choosing high-quality materials, particularly for the concrete and reinforcement, is essential. Using durable materials ensures that the foundation remains stable, strong, and resistant to wear over time-cutting corners here can lead to future problems.
Following these steps will ensure a strong and reliable foundation for your home.
Start by conducting soil tests to determine the load-bearing capacity of the soil. Understanding its strength ensures that your foundation will support the weight of your home and avoid any future settling or shifting.
Accurately mark the locations of the footings and strap beams. Proper layout planning is key to ensuring that the load is evenly distributed and the foundation is aligned with your structural design.
Dig trenches according to the foundation's design specifications. Excavation needs to be precise to ensure the footings and beams sit at the correct depth and location, offering proper support.
Place steel rebar in the excavated trenches. Reinforcing the footings and beam with rebar strengthens the concrete, ensuring it can withstand the weight and stresses placed on the foundation over time.
Once the reinforcement is in place, pour high-quality concrete into the trenches. This step is crucial for ensuring the foundation's strength, durability, and resistance to cracking or shifting.
Allow the concrete to cure for at least 7 days. Proper curing ensures the concrete achieves maximum strength and stability, making it resilient and long-lasting.
Your home is your identity, and its foundation plays a pivotal role in shaping its stability and longevity. Strap footing is a practical and effective solution to ensure your home’s stability, especially when dealing with space constraints or uneven soil conditions. Investing in strap footing ensures your home stands the test of time, providing the security and durability needed for generations and safeguarding the integrity of your home's foundation and identity.
The strongest footing depends on the building’s requirements and soil type. Strap footing is a great choice for complex sites due to its load-distribution design.
Footing depth varies based on soil and load factors, typically ranging between 1.5 and 3 meters.
Footings anchor the structure, distributing its weight to the ground and preventing uneven settlement.
The depth of strap footings depends on the soil type and building requirements. Consulting an engineer is always a smart move.
Strap footings are used to stabilise structures on uneven soil, manage space constraints, and ensure balanced load distribution.
