A Comprehensive Guide to Raft Foundation Types

A raft foundation, or mat foundation, distributes a building's load over a large area. This approach is ideal for sites with weak soil, where traditional foundations might need to provide more support. A raft foundation spreads the weight evenly, covering the entire building area, reducing soil pressure, and preventing uneven settlement. It's commonly used in high-rise buildings and industrial structures to ensure stability and long-term durability. Raft foundation details are essential for understanding its benefits and applications in various construction projects.

How Does a Raft Foundation Work

Raft foundations create a solid slab of concrete that rests on the ground. This slab, often supplemented with steel, distributes the building's weight evenly across its entire area. Doing so minimizes the pressure on any single point of the soil, reducing the risk of collapsing and providing a stable base for the structure.

Types of Raft Foundation

Raft foundations come in various designs, each tailored to suit specific structural needs and soil conditions. Here are the most common types of raft foundations:

1) Flat plate mat

A flat plate mat is the simplest form of raft foundation, consisting of a single uniform-thickness concrete slab. It is typically used in structures with relatively light loads and uniform soil conditions.

2) Plate Thickened Under The Column

This type of raft foundation involves thickening the concrete slab under the columns, providing additional strength where the load is slightly more. It is suitable for buildings with heavier loads. These raft foundations help in managing increased load at specific points.

3) Two-Way Beam and Slab

This type features a network of beams and slabs arranged in perpendicular directions. The beams add rigidity and support, making this type ideal for structures with uneven loads or varying soil conditions.

4) Plates with Pedestals

Plates with pedestals involve a concrete slab with pedestals or columns rising above it. These pedestals provide additional support, making this type suitable for industrial buildings or structures with heavy machinery.

5) Piled Raft

A piled raft foundation combines a traditional raft with piles penetrating the ground. The piles transfer the load to deeper, more stable soil layers, supporting buildings with hefty loads or areas with poor soil conditions.

6) Cellular Raft Foundation

This type includes a series of interconnected rigid frames or cells, offering immense strength and support. It is suitable for large or heavy structures and provides exceptional load distribution and stability.

Materials Used for Raft Foundation Construction

Constructing a raft foundation requires a combination of materials that work together to create a strong and durable base. Here are the key materials typically used:

1) Concrete

Concrete is the primary material in raft foundations, forming the large slab that supports the entire structure. It is chosen for its strength, durability, and ability to evenly distribute loads across a wide area. The concrete used in raft foundations is usually reinforced with steel to enhance its load-bearing capacity and resistance to cracking.

2) Reinforcement Steel (Rebar)

Steel reinforcement, or rebar, is embedded within the concrete slab to provide additional strength and flexibility. Rebar helps the foundation resist tensile forces, which concrete alone might not withstand. The steel bars are arranged in a grid pattern within the slab, ensuring that the foundation can handle the stresses imposed by the building above.

3) Formwork

Formwork is the temporary mold into which the concrete is poured. It defines the shape and size of the raft foundation and ensures that the concrete sets in the desired configuration. Formwork can be made from wood, metal, or plastic, depending on the project requirements. It is carefully constructed to support the weight of the wet concrete and to maintain the shape until the concrete cures.

4) Waterproofing Membranes

Waterproofing membranes are often applied to the surface of the raft foundation to protect it from water infiltration. This is especially important in areas with high groundwater levels or where the foundation is in contact with moisture-prone soil. The membranes help prevent water from seeping into the concrete, which could otherwise weaken the foundation over time.

5) Admixtures

Admixtures are chemical additives mixed with the concrete to enhance its properties. They can improve workability, increase strength, reduce setting time, and provide additional protection against environmental factors. For raft foundations, admixtures that enhance durability and water resistance are commonly used, ensuring the foundation's long-term performance.

Construction Process of Raft Foundation

1) Site Preparation

The process begins with clearing the site and leveling the ground. The soil is then excavated to the required depth. If the soil is weak, it may need to be compacted or stabilized with gravel to ensure a firm base.

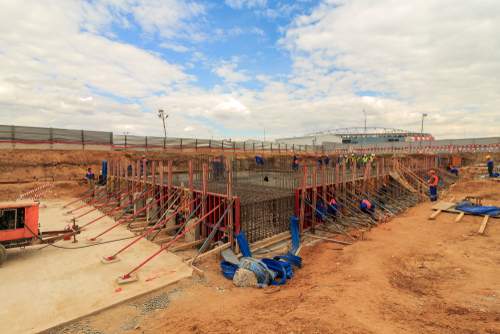

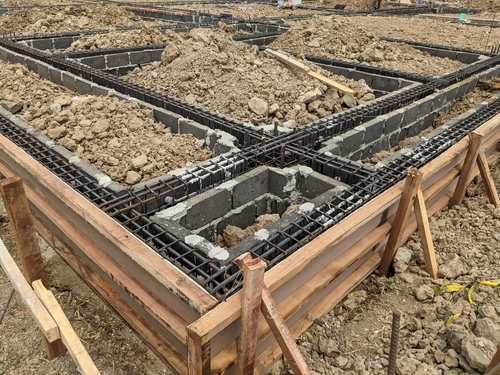

2) Setting Up Formwork

Formwork, which acts as a mold for the concrete, is set up around the foundation area. This step ensures the concrete stays in place and forms the correct shape. The formwork must be properly aligned and secured.

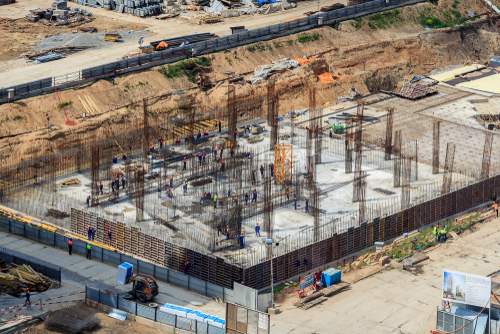

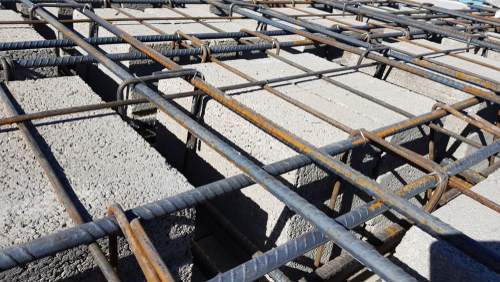

3) Placing Reinforcement Steel (Rebar)

Steel bars, known as rebar, are laid out in a grid pattern within the formwork. These bars give the foundation extra strength and help it resist cracking. The rebar is tied together to keep it in position during the concrete pour.

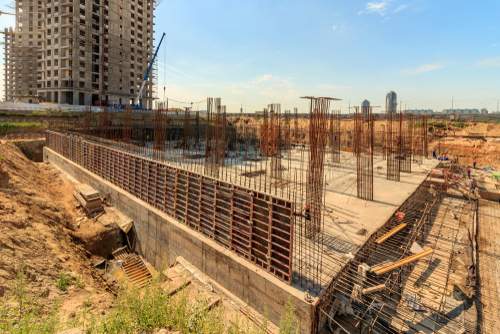

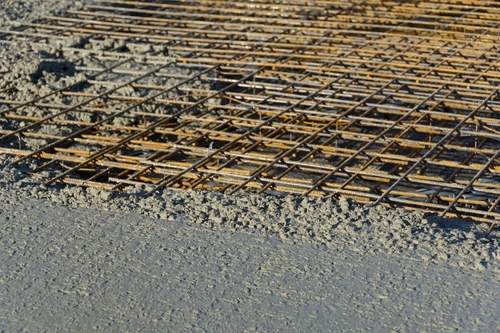

4) Pouring Concrete

Concrete is then poured into the formwork, covering the entire foundation area. Care is taken to pour the concrete evenly, and vibrators are used to eliminate air pockets, ensuring the concrete fills all spaces around the rebar.

5) Curing the Concrete

After pouring, the concrete needs time to cure, or harden. During this period, the concrete is kept moist to prevent cracking. Curing typically takes a few days to ensure the foundation gains the necessary strength.

Also Read:  What is Curing of Concrete

6) Removing Formwork and Finishing

Once the concrete has cured, the formwork is removed. The foundation is then smoothed out, and any necessary finishing touches are applied. Sometimes, a waterproof layer is added for extra protection.

7) Final Inspection

The last step is a final inspection to ensure the foundation meets all required standards. Any necessary adjustments are made before construction continues.
