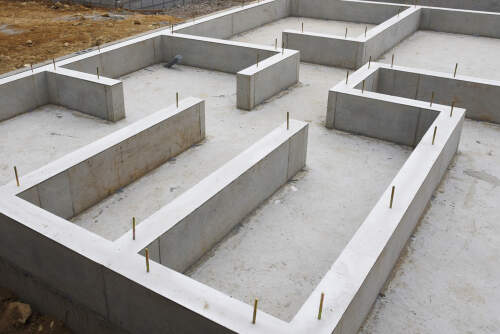

Building foundations are the most crucial structural components in any house or building, as it bear the entire load of the structure and transfer it safely into the ground below. It forms the base that supports the entire weight of the walls, floors, roof, utilities and inhabitants of the home. The primary purpose of foundations is to provide stability by evenly distributing the structural loads into the underlying soil. While building foundations this prevents uneven settlement of the building over time, which can cause major cracks and damage.
Two main types of foundations are used in residential construction, shallow and deep. Shallow foundations extend down around 1.5 meters or less and are suitable for single-family homes and low-rise buildings. They include spread footings, mat slabs, floating slabs, etc. Deep foundations go beyond 1.5 meters in depth into deeper soil or bedrock. They are required for multi-storied buildings and homes on weak or unstable soils. Piles, piers and caissons are common deep foundation systems. The type of house foundations depends on soil conditions, building loads and construction budget. A properly designed and built foundation keeps the home steady, secure and free from settlement issues.
They are required for multi-storied buildings and homes on weak or unstable soils. Piles, piers and caissons are common deep foundation systems. The type of house foundations depends on soil conditions, building loads and construction budget. A properly designed and built foundation keeps the home steady, secure and free from settlement issues.
To begin your house foundation project, gather essential tools and materials:
1. A shovel for digging
2. A pickaxe for tough terrain
3. A trowel for concrete work
4. A spirit level for precision
5. Measuring tapes, string and pegs for markings,
6. A wheelbarrow for transport,
7. Wooden planks for formwork
8. A concrete mixer for efficient mixing
9. Reinforcement steel for strength
10. Concrete blocks for retaining walls
11. Gravel for drainage
12. Construction sand, cement, and clean water for mixing and curing.
These are the basic tools and materials required to equip you in building foundations that are dependable for your dream home.
If you've ever wondered how to build a house foundation step by step, let's dive into the foundation constriction process, providing you with a clear roadmap for this crucial construction stage.
Selecting the right site is crucial when building foundations. Opt for sites with stable, compacted soil that have good load-bearing capacity. Avoid loose fill or sandy soils that can shift and settle. Ensure the site does not flood or have a high water table, which exerts pressure on the house foundation. Thoroughly survey the site and check for underground cables, pipes, or large tree roots that could obstruct the excavation and foundation work. Tree roots especially can damage foundation walls and footings if precautions are not taken.
Also Read: Land Selection According To Vastu)

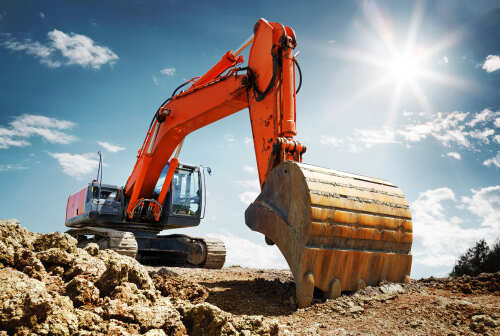

In the process of building foundations, once you have finalised the site, mark out the house foundation layout accurately using string lines, pegs and spray paint. Then, excavate the foundation trenches and footings as per the dimensions and depth specified in the plan. Excavation depth is determined by soil type and building load. Sandy or loose soil requires deeper footing. Ensure proper slope and drainage of trenches. Level and thoroughly compact the excavated soil before you begin concreting to prevent future settling. Compaction provides a stable base.

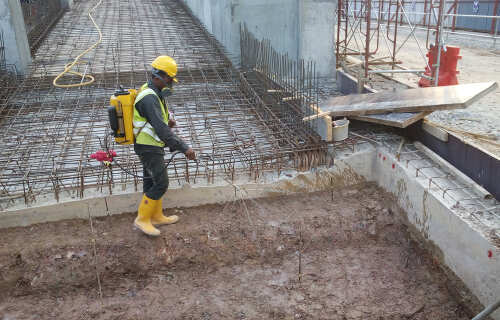

Termites can destroy and wreak havoc on wood construction and house foundations. So, apply a chemical anti-termite treatment on the sides and bottom of foundation trenches before pouring concrete. The treatment creates a chemical barrier to repel and eliminate termites before they enter the foundation. Choose an appropriate termiticide based on soil type and the presence of groundwater in the process of building foundations. Strictly follow all product instructions and safety precautions when applying the treatment.

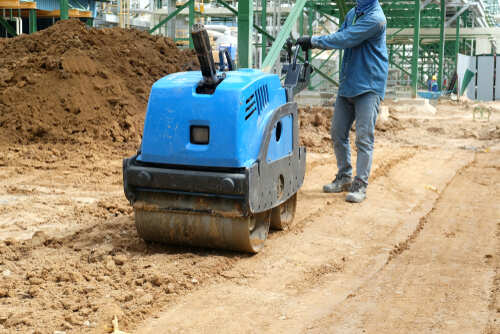

Compacting the excavated soil is a critical step before laying the foundation. Once trenches are dug, compact the soil at the base using a hand tamper or mechanical plate compactor. Compaction squeezes soil particles together, increasing density and load-bearing capacity. Do multiple passes with the compactor to achieve uniform compaction. The soil should be moist during compaction. While building foundations this prevents future settling and provides a stable base for the foundation.

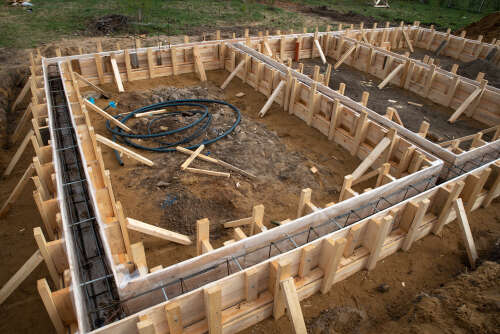

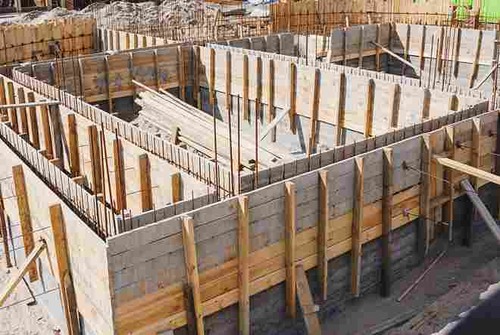

Erect wooden planks or plywood along the inner perimeter of the foundation trenches to contain the concrete pour. Brace the formwork properly to prevent bulging when concrete is poured. Use spirit levels to ensure formwork corners are perfectly vertical and aligned. Apply a release agent to the formwork so the concrete does not stick. Formwork contains fluid concrete, provides a smooth finish and maintains proper foundation dimensions.

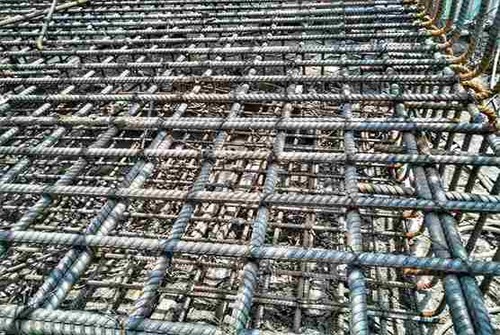

Steel rebar reinforcement improves the strength and durability of concrete foundation walls and footings. While building foundations it is necessary to consult a structural engineer for the rebar design and layout. Place rebars as per design before pouring concrete. Use plastic or metal bar chairs to hold the rebar cage in position. Rebar chairs provide proper spacing and concrete cover over the steel. The rebars bear tensile loads and prevent cracks in concrete. Ensure correct rebar size, spacing and overlaps.

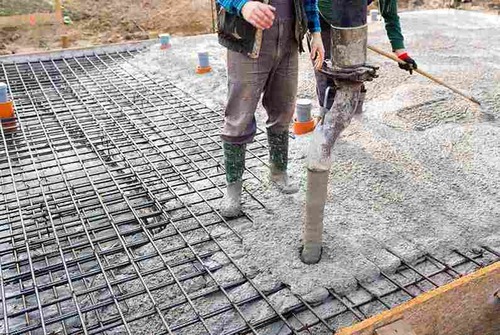

Prepare high-quality concrete mix as per the recommended water-cement ratio. Pour concrete into the foundation trenches in continuous lifts of 18-24 inches. Use a tamping rod to consolidate concrete and eliminate air voids that weaken the foundation. Level and smoothen the top surface with a trowel for a neat finish. While building foundations cure concrete for at least 7 days by applying water. Proper pouring and curing results in strong, durable foundation concrete. Follow professional guidance for best practices.
Building foundations, especially good foundations, have the following qualities:
1. Transfers structural loads evenly into the ground
2. Prevents cracks and settlement of the building
3. Provides a strong, stable base for the superstructure
4. Withstands the effects of ground movement
5. Made of high-quality concrete and proper rebar reinforcement
6. Extends below the frost line to prevent damage from freezing
By adhering to proper foundation construction steps, utilising the right materials, and employing robust techniques, you can build a strong and durable foundation for your home that will easily last for decades. When building the house foundation, pay close attention to choosing an appropriate site, conducting thorough soil testing, excavating to the required dimensions, erecting sturdy formwork, properly reinforcing, and carefully pouring high-quality concrete. Staying meticulous in every stage of building foundations and not cutting corners will result in a rock-solid base that will support and protect your home for generations.
