One-way slabs carry loads in one direction, supported by beams on two sides, suitable for long, narrow structures.
Two-way slabs bend in two directions, supported by beams on all sides, ideal for heavier loads and larger spans.
One-way slabs transfer load to two beams; two-way slabs transfer load to columns or walls.
One-way slabs require less steel; two-way slabs need more due to bidirectional spanning.
One-way slabs are economical for spans up to 3.6 meters; two-way slabs are efficient for spans up to 6 meters.
A one-way slab is a simple form of a concrete slab supported by beams on two opposite sides to carry the load in one direction. It is a type of slab where the ratio of the longer span to the shorter span is greater than or equal to two. It is designed to resist bending in only one direction, typically spanning in a shorter direction.

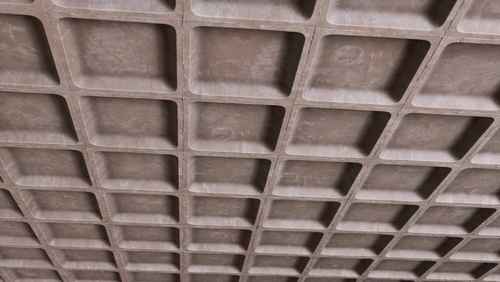

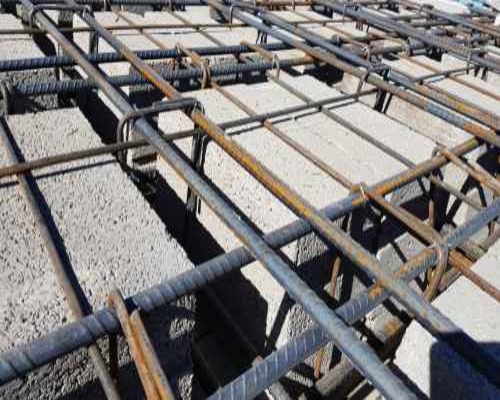

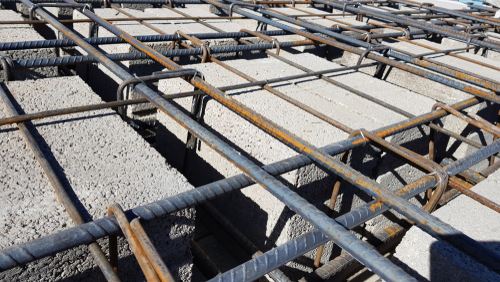

On the other hand, a two-way slab is supported by types of beams on all four sides and bends in two directions. It is capable of handling heavier loads and larger spans than one-way slabs. A two-way slab is a type of slab that is supported by beams on all four sides and designed to resist bending in two directions, spanning in both the longer and shorter directions.
There are a few differences between one and two-way slabs. Here is a table that breaks down these specific differences.
Feature |
One-Way Slab |
Two-Way Slab |
Direction of Span |
Spans in one direction |
Spans in two directions |
Support |
Supported by beams on two opposite sides |
Supported by beams on all four sides |
Load Transfer |
Transfers load to the two supporting beams |
Transfers load to the columns/walls below |
Thickness |
Comparatively thicker |
Comparatively thinner |
Reinforcement |
Less reinforcement required |
More reinforcement required due to bidirectional spanning |
Span Length |
Suitable for short spans |
Suitable for longer spans |
Application |
Suitable for long and narrow structures |
Suitable for square or rectangular structures |
Economical for spans up to 3.6 meters.
Requires less steel reinforcement.
Greater slab depth provides structural strength in the shortest direction.
Bending occurs only in one direction, limiting load distribution.
Increased slab thickness due to less steel reinforcement.
Economical for panel sizes up to 6m x 6m.
More steel reinforcement leads to a thinner slab.
Load distribution in both directions enhances structural strength.
Complex design method compared to one-way slabs.
Requires skilled workers.
Higher construction costs.
The choice between them depends largely on the specific requirements of a project, such as the desired span, load capacity, and aesthetic goals. One-way slabs tend to be practical for small to medium spans and simpler designs, while two-way slabs are the go-to for larger, more ambitious structures where longer spans and fewer columns are desired. By understanding the difference between one-way slab and two-way slab, their advantages, and disadvantages, builders and engineers can make informed choices that lead to safe, cost-effective, and functional structures.
The minimum thickness of a one-way slab is generally determined by its span and load requirements. It is often set at a depth that is about one twelfth of the clear span between supports for simply supported slabs and one fifteenth for a continuous slab.
The thickness of a two-way slab is greater than that of a one-way slab due to its design for carrying loads in multiple directions. Its thickness typically increases with the slab's span and the amount of load it needs to carry.
Minimum spacing in a two-way slab refers to the distance between reinforcing bars. This spacing is crucial for ensuring the slab's structural integrity and varies according to the design requirements and the concrete mix used.
One-way slabs are often used in residential buildings for smaller spans, such as in corridors or small rooms. Two-way slabs might be preferred for larger, open-plan areas that require support from multiple directions due to wider spans. The choice depends on the building design and load considerations.
