The workability of concrete is a critical property that determines the material's ease of use and strength.
The workability of concrete is assessed through multiple tests such as the Slump Test, Flow Table Test, Compaction Factor Test, and Vee-Bee Consistometer Test. Each test provides essential information for the optimal application method based on the workability levels required.
The degree of workability varies between Unworkable, Medium, and Highly Workable Concrete, each having unique properties and applications in construction.
Factors such as the water-cement ratio, aggregate size and shape, use of admixtures, method of mixing concrete, and thickness of the concrete section can considerably influence the workability of concrete.
The Slump Test is a widely used method to measure workability, providing immediate onsite results which guide adjustments to the mix before placement.
Understanding and controlling workability is crucial for the creation of robust, durable, and reliable concrete structures, thereby playing a significant role in the success of construction projects.
Workability of concrete is a practical term that describes how easy it is to handle, apply, and finish concrete when making structures. In other words, it reflects the convenience and feasibility of working with fresh concrete during construction. It's about the right consistency and robustness that allows the concrete to be properly handled and shaped into structures while maintaining its uniformity. Notably, the workability of concrete is directly proportional to the water content in the mix. This means that its workability gets better as you add more water to the mix, making it easier to mix. Although, too much water can weaken the final concrete, so it's important to find the right balance.
Highly workable concrete ensures efficient construction processes, as it compacts thoroughly, minimizing the risk of honeycombing or voids, which could otherwise compromise the concrete's structural integrity. The right workability ultimately enables the creation of durable and reliable structures.
To ensure that concrete has the right workability for a construction project, several tests are utilised. These tests provide a quantifiable measure of concrete's workability, helping determine whether a certain mix is suitable for the specific requirements of a project. Here are some of the most commonly used tests:
This is the most widely used method for measuring the workability of concrete. It involves filling a conical mould with fresh concrete, then lifting the mould and measuring how much the concrete "slumps" or settles. A larger slump indicates higher workability.

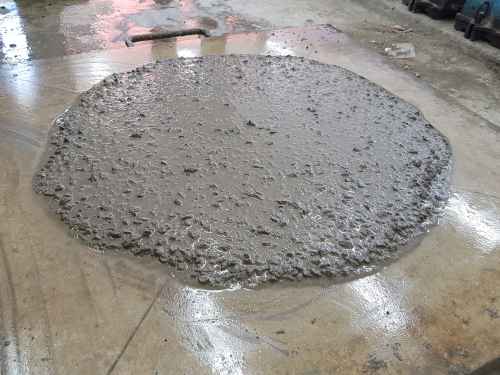

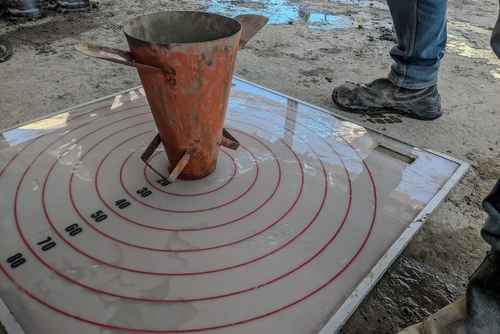

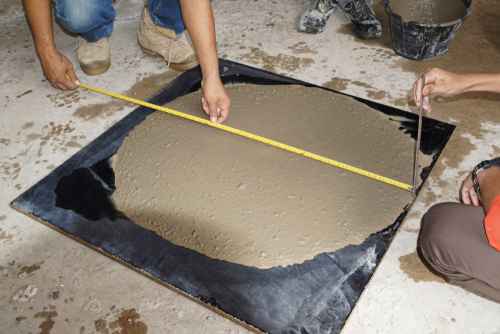

Used mostly for concrete with a high flowability, this test measures how far concrete spreads on a table when it's lifted. It’s particularly useful for concrete that is too fluid for the slump test.

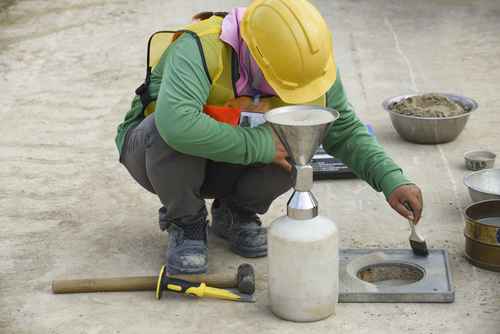

This test for concrete workability involves dropping a known volume of concrete into a cylinder and measuring the weight of the concrete that can be compacted into it. A higher compaction factor indicates better workability.
This test measures the time it takes for concrete to be compacted into a standardized shape, with shorter times indicating higher workability.
Each of these tests provides valuable information about how a concrete mix will perform in the real world, guiding constructors for the best use-case scenario and application method based on the workability levels needed for a project.
To ensure that concrete has the right workability for a construction project, several tests are utilised. The workability of concrete is measured by these specific tests, providing a quantifiable measure of concrete's workability and helping determine whether a certain mix is suitable for the specific requirements of a project. Here are some of the most commonly used tests:
Unworkable concrete, also known as harsh concrete, has a very low degree of workability. This can be either due to a low water-cement ratio or a less-than-optimal mixture of components. The mix is stiff and hard to handle. Although unworkable concrete can be tough to work with and place in formwork, it is often used in large and thick sections where compacting might be easier, such as dams or supporting pillars.
Medium workable concrete strikes a balance between being too stiff and too fluid. Such a mix becomes relatively easier to manage, place, and finish, making it a preferred choice for most constructions, including beams, slabs, walls, columns, and foundations. The concrete possesses enough workability to be compacted with moderate effort, leading to durable structures with fewer voids.
Highly workable concrete is highly fluid and easy to work with. It can easily be placed and compacted, often by its own weight. This type of concrete finds its use in heavily reinforced structures or ones with complex formwork. Although it’s easy to work with, it requires careful control to avoid segregation—the separation of coarse particles from the mix—and potential loss of strength. Flowing concrete, self-consolidating concrete, and shotcrete are typical examples of highly workable concrete.
The workability of concrete refers to its ease of placement and ability to sufficiently fill a form or mould. Several factors can influence this crucial property; they include:
The water cement ratio is a key determinant of concrete's workability and strength. The ratio refers to the volume of water divided by the volume of cement in a concrete mix. If this ratio is too high, we may achieve higher workability but at the expense of reduced strength and durability. On the other hand, a low ratio can result in high strength but less workable concrete.
The size, shape, and even texture of the aggregates used can also affect the workability of concrete. Generally, larger aggregates decrease workability due to the larger voids they create, and rounded, smooth aggregates tend to increase workability when compared to uneven, angular ones.
Adding admixtures in concrete can greatly alter its workability. Chemical admixtures such as water-reducers and plasticizers can enhance workability by reducing the water-cement ratio required without sacrificing strength.
The method and duration of mixing, including the speed and type of mixer used, can impact the workability of concrete. Over-mixing can lead to segregation of aggregates, while under-mixing may result in an incohesive mix.
The thickness of the concrete layer being poured can influence workability. Typically, thinner sections require more workable concrete to ensure the mix entirely fills the form or mould without leaving voids.
The Concrete Slump Test is a simple and widely used test conducted to measure the workability or fluidity of a concrete mix. Its popularity stems from its ability to provide immediate results on-site with minimal equipment, helping adjust mix properties before placement in forms.

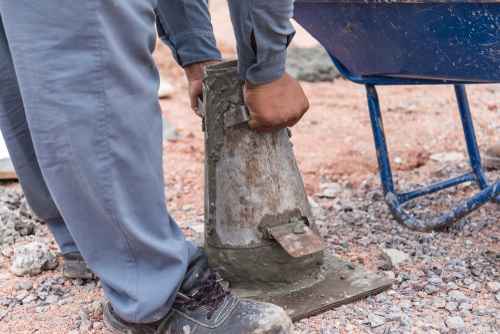

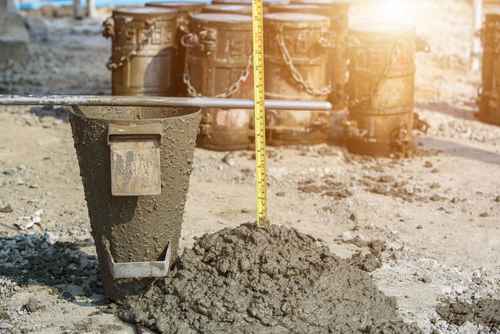

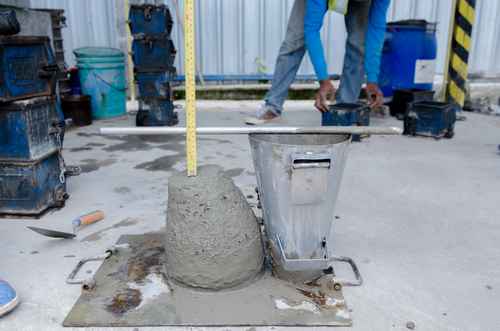

The test involves filling a cone-shaped metal mould, known as a slump cone, with freshly mixed concrete in three layers, each compacted with 25 blows from a standard rod. Once filled, the cone is carefully lifted vertically upwards, allowing the concrete to slump due to gravity. The decrease in the height of the concrete mix from its original height in the cone (the slump) is then measured.
This indicates a very low workability mix, typical for road construction where the concrete needs to hold shape.
Suggests a rather stiff mix, used in building foundations where lower workability concrete might be needed.
Indicates good workability suited for general construction work, ensuring ease of placement without compromising strength.
Reflects a highly workable or flowing mix, often requiring adjustment to avoid issues with durability or segregation.
The Slump Test for concrete workability is particularly useful during construction for ensuring the concrete mix maintains consistent workability, essential for achieving structural strength and durability. However, its accuracy diminishes for very dry or very wet concrete mixes. In such cases, other workability tests might be more appropriate to assess the concrete's suitability for a project's specific requirements.
In summary, the mixing, transporting, placing, and compaction without the segregation of concrete has a direct affect on the workability of concrete. Understanding and controlling workability is essential for creating durable, strong, and consistent concrete structures, highlighting the importance of careful mix design and workability assessment in construction projects.
Also Read: Density of Concrete
The proportionality of the workability of concrete refers to the relationship between the concrete components that affect its ease of use. Primarily, increasing the water content or using chemical admixtures can enhance workability, though it must be balanced to avoid affecting strength and durability negatively.
A workability test on concrete measures its ease of mixing, placing, compacting, and finishing. The most common method is the Slump Test, which evaluates the concrete's consistency, giving an immediate indication of its workability based on how much the concrete slumps when a standard cone is removed.
Concrete workability is crucial because it affects the material’s handling and placement efficiency, its ability to fill molds appropriately, and the final quality and strength of the structure. Good workability ensures uniform compaction without segregation, leading to durable and aesthetically pleasing construction.
The "good" slump for concrete depends on the project requirements. A slump between 50 to 100 mm is generally preferred for most construction works, offering a balance between workability and strength. The exact value should align with the specific needs of the structure being constructed.
The workability of concrete ranges from low to high, typically measured by the Slump Test. The slump can vary from 0 mm (very low workability) for dry mixes, suitable for roads, to over 150 mm (very high workability) for mixes used in complex forms requiring easy flow and compaction.
